Architectural / Engineering Survey

At CA5 Survey, we provide comprehensive Architectural and Engineering Design Surveys to support residential, commercial, institutional, and infrastructure projects throughout Southern California. Our surveys are tailored to provide architects, engineers, planners, and consultants with the accurate existing-condition information required for project design, permitting, and construction.

Our design surveys combine precise field measurements, boundary research, topographic mapping, surface utility documentation, and advanced geospatial technologies to create reliable base mapping for the design team.

Services Typically Include

  • Existing topographic conditions
  • Property boundaries and easements
  • Building locations and finished floor elevations
  • Hardscape and landscape improvements
  • Utilities and visible surface infrastructure
  • Retaining walls, drainage features, and slopes
  • Street improvements, sidewalks, curb and gutter
  • Trees, fencing, and significant site features
  • ADA-related elevation and access information
  • Coordination with aerial mapping and laser scanning data where appropriate

Advanced Survey Technologies

CA5 utilizes state-of-the-art technologies for an ancient science, including:

  • GPS/GNSS positioning
  • Robotic total stations
  • UAV/drone aerial mapping

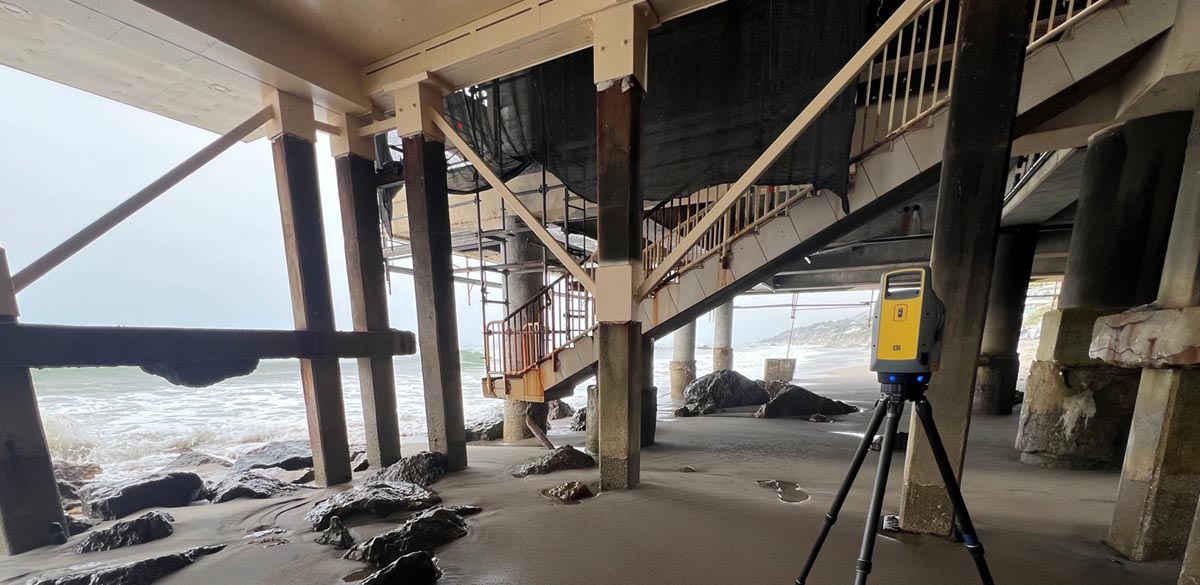

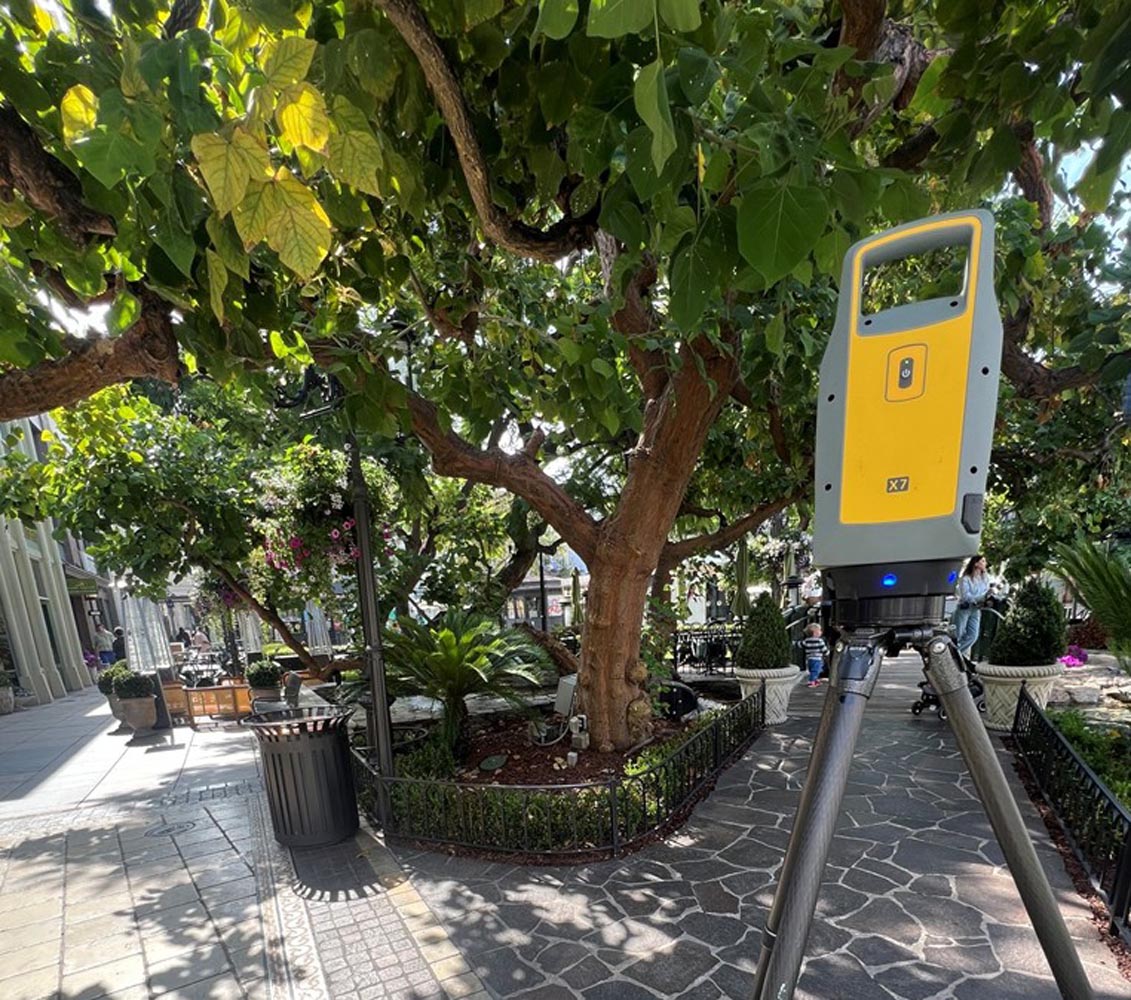

  • 3D laser scanning and point-cloud data
  • Digital terrain modeling
  • CAD and geospatial data integration

These technologies allow us to efficiently capture accurate site information for projects ranging from small residential remodels to large-scale developments and complex hillside properties.

Supporting the Design Team

Our goal is to provide clear, accurate, and usable survey information that allows architects and engineers to move efficiently through planning and design. We understand the importance of responsive communication, coordination with consultants, and meeting project schedules.

CA5 Survey regularly supports:

  • Residential custom homes and estates
  • Fire rebuild projects
  • Commercial developments
  • Tenant improvements
  • Multi-family and mixed-use projects
  • Educational and institutional facilities
  • Public works and infrastructure improvements

Southern California Experience

Our team has extensive experience working throughout Los Angeles, Ventura, Orange, Riverside, and San Bernardino Counties, including complex coastal, hillside, and urban environments. We understand local agency requirements and the level of detail necessary to support successful project approvals and construction documentation.
